Body Scanners With Real Raw Imaging
Thruvision passive terahertz cameras show what people are actually carrying under their clothing, on live imagery, at a safe distance. No radiation emitted, no pat-downs, no privacy concerns: the person walks, the concealment shows.
The technology
Real Raw Imaging, Not Avatars
Everything on earth naturally gives off a tiny amount of terahertz energy, and the human body gives off more than most objects. Thruvision's patented sensor reads that energy like a camera reads light. Anything concealed under clothing blocks the body's natural emission and appears as a clear dark shape on the live image, showing its true size, shape and location in real time.
Unlike the millimetre-wave archways found at airports, there is no synthetic mannequin and no guesswork: operators see the actual concealment on raw imagery and can make a fast, confident decision without a physical pat-down. And because the technology is entirely passive, receiving energy rather than transmitting it, there is nothing emitted at the person being screened.
- Detects all materials: metallic and non-metallic, including weapons, explosives, drugs, liquids, electronics, tobacco, cash and merchandise
- Safe for everyone: pregnant women, children, pacemakers and medical implants
- Respectful by design: a heat-style outline with no anatomical detail that cannot distinguish age, gender or ethnicity — GDPR-compatible
- Screens at distance: concealed items revealed from 2.5 m to 7 m away, on stationary or walking people
The range
Two Platforms, Every Screening Scenario

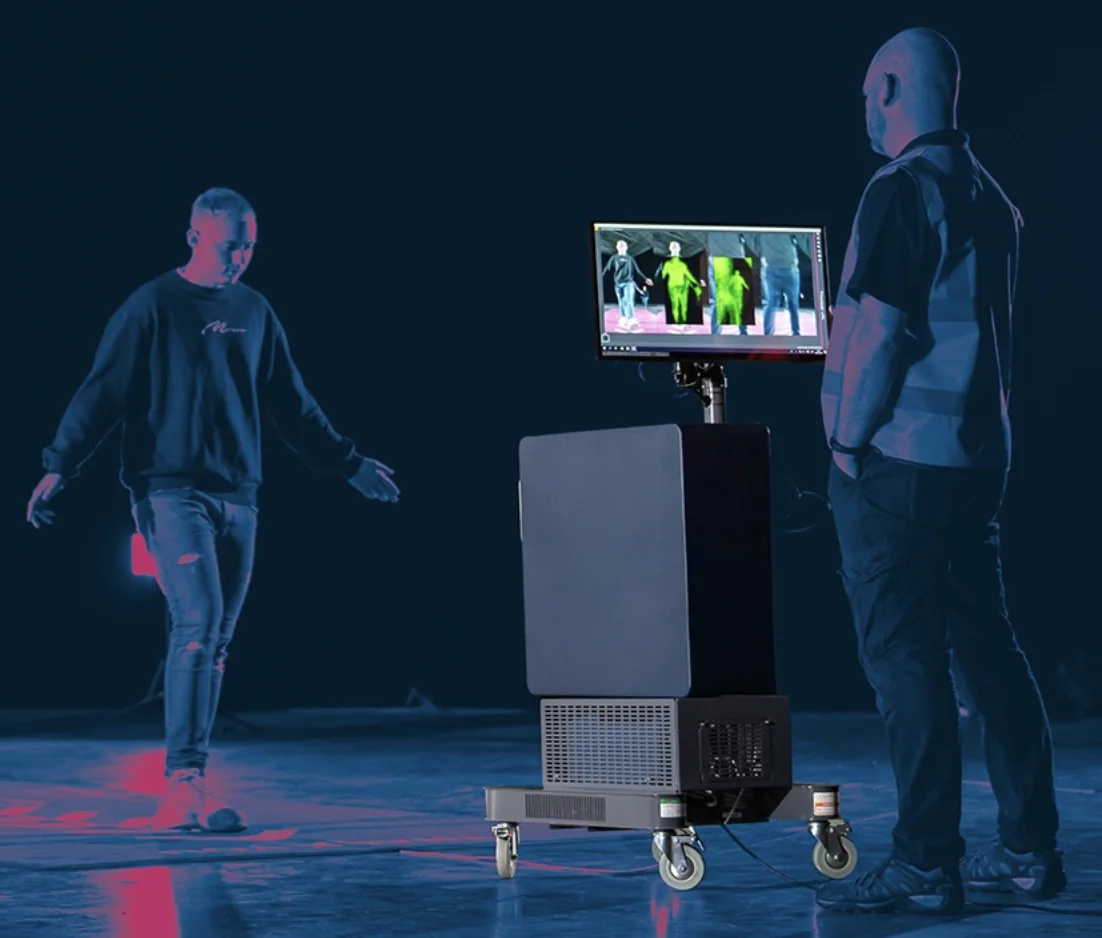

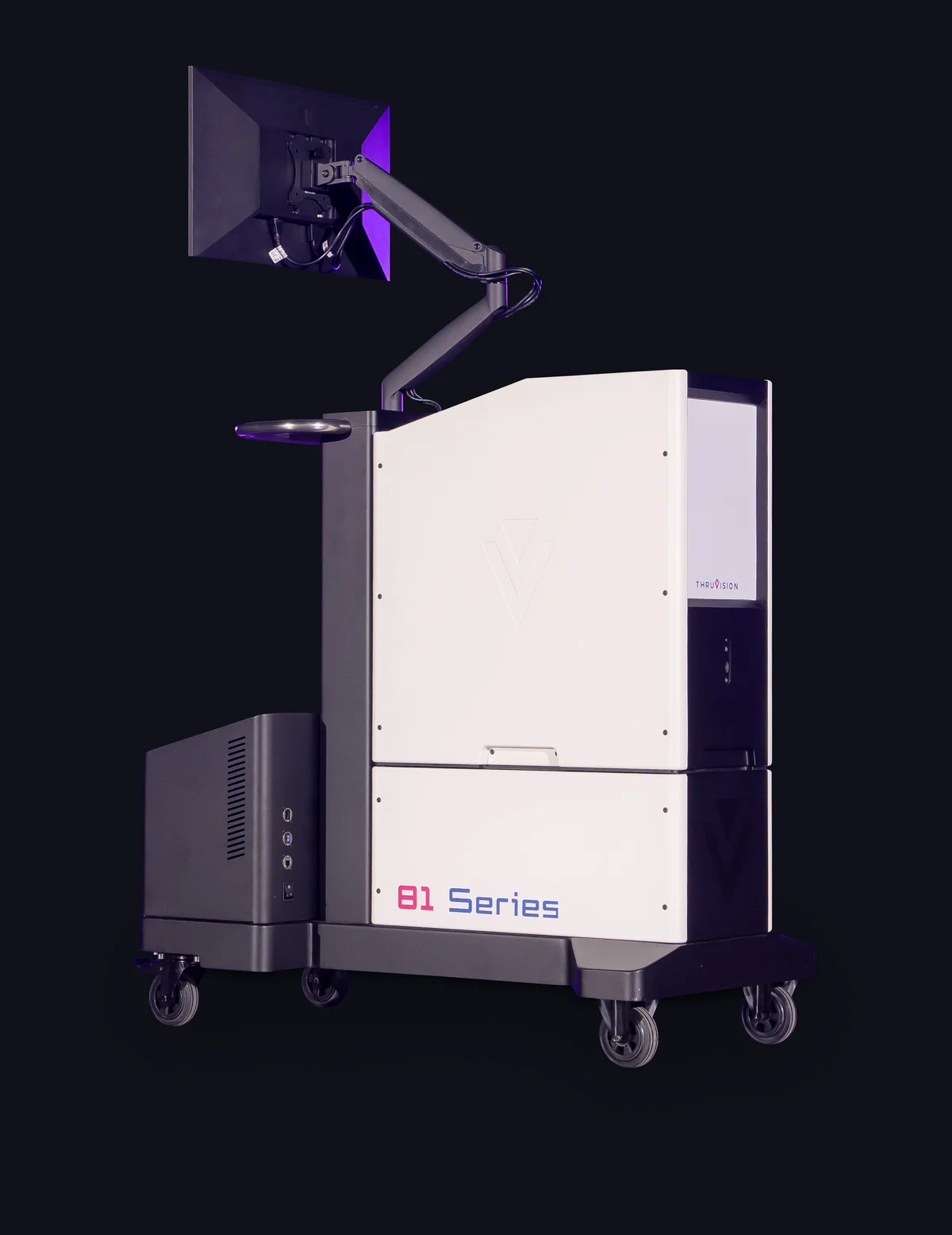

81 Series — the Screening Workhorse
The 81 Series is Thruvision's latest-generation mobile screening platform: an integrated unit with touchscreen operator station and rugged wheels that deploys in minutes, indoors, wherever it's needed. Three camera models cover every requirement — the cost-effective 8104 for larger items, the high-performance 8108 for the widest range of operations, and the 8116 for the smallest items at the highest flow rates. Run it as SpotCHECK (deep random screening, up to 300 people/hr), WalkTHRU (up to 600/hr) or WalkTHRU Plus (free-walking lanes at up to 1,800/hr).
SmartSCREEN software adds automatic recording, people counting and privacy masking, while DynamicDETECT — Thruvision's Artificial Intelligence (AI) detection engine — automatically highlights concealed items on walking or stationary people, so operators never miss a quiet moment's concealment.

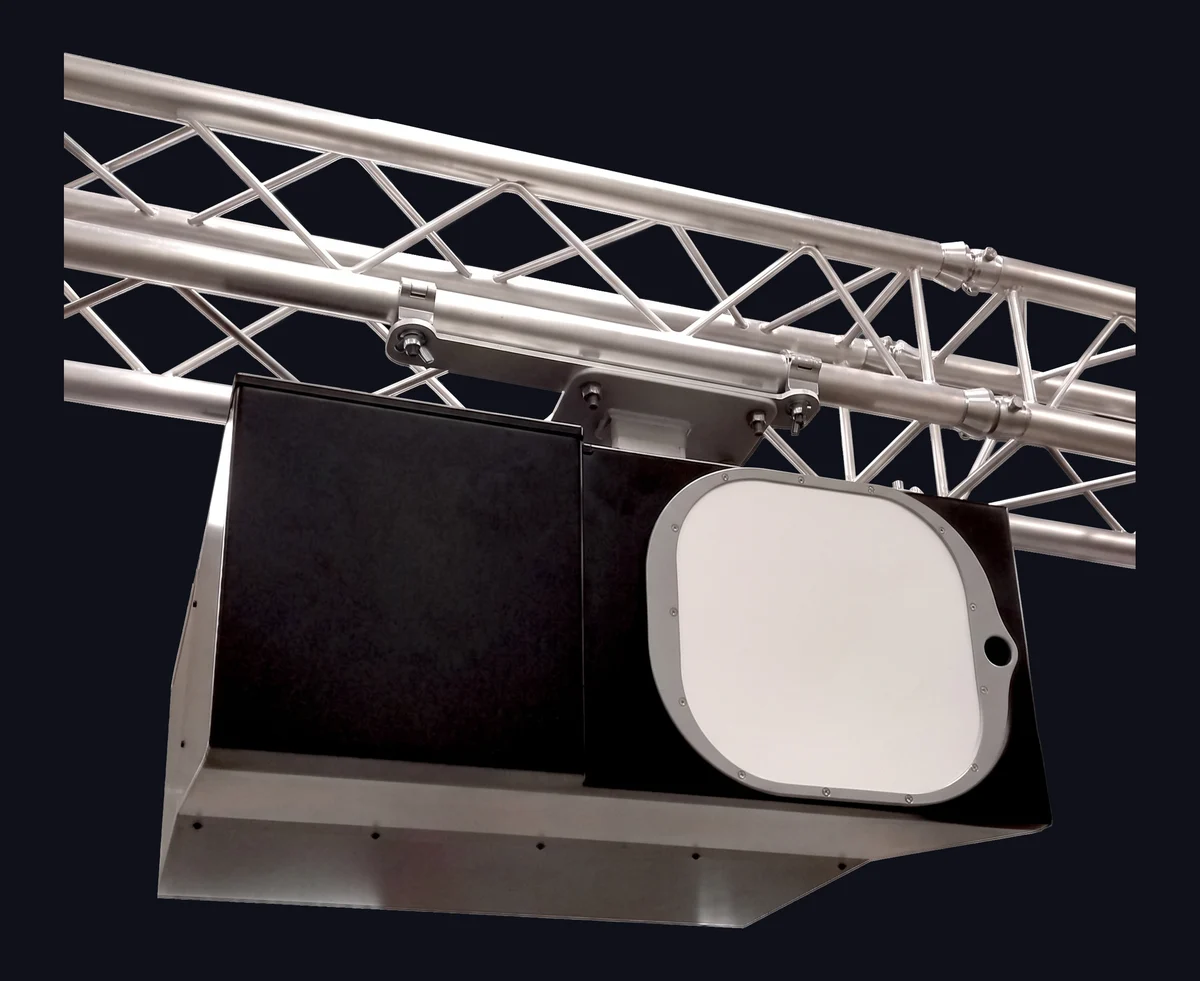

HTC — High-Throughput & Covert Capable

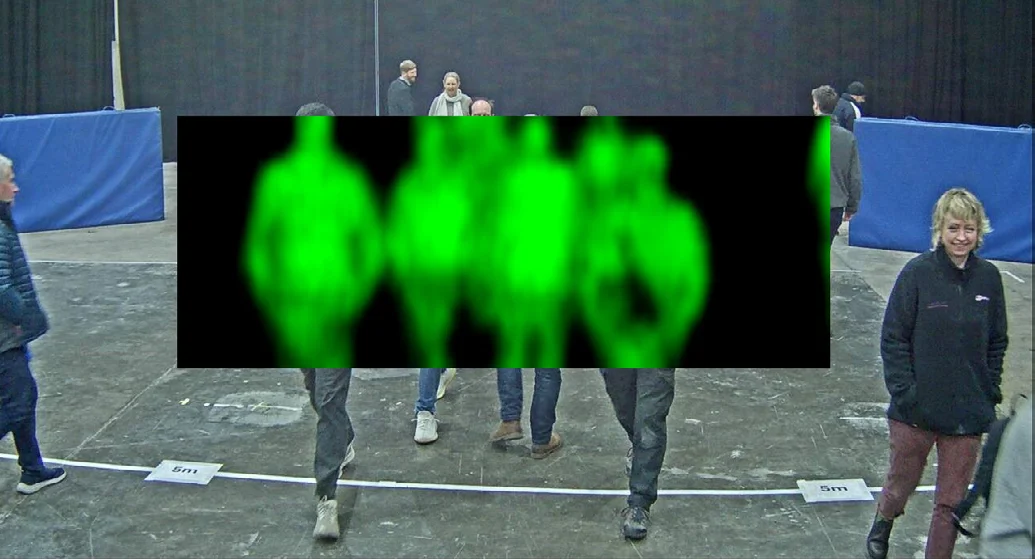

The HTC screens crowds the way CCTV watches them: mounted overhead or on a gantry, reading multiple lanes of free-walking people at up to 7 metres' distance, with no interruption to flow. It is optimised for mass-casualty threats — bomb vests, semi-automatic weapons, large bladed weapons and liquids — making it a powerful outer screening layer for transport hubs, concourses and event entrances. Deployed in pairs for front and rear coverage, and discreet enough to be hidden behind signage for fully covert operations.
Security screening
A Screening Layer Metal Detectors Can't Provide
A walk-through metal detector tells you metal is present. Thruvision shows you what is there and where, and sees the non-metallic threats an archway physically cannot: explosives, liquids and ceramic blades. Screening happens at distance, before a person reaches your pinch point, which keeps queues moving and keeps staff out of harm's way.
- Venues & events: proportionate, high-flow screening for Martyn's Law duties, without airport-style queues
- Transport hubs: free-flow screening of concourses and platforms at CCTV-like scale
- Prisons & secure estates: drugs, phones and weapons found at the gate, on staff and visitors alike
- Customs & borders: smuggled goods, cash and narcotics revealed without physical searches
- Corporate & government entrances: discreet screening that respects the people it protects
Thruvision sits naturally alongside the rest of a layered checkpoint: walk-through metal detectors for compliance screening, AI X-ray for bags, and Thruvision for the person.
Loss prevention
Profit Protection Your Staff Will Actually Accept
Thruvision is the quiet standard in retail distribution loss prevention, used by major retailers and logistics operators worldwide to screen staff and contractors leaving high-value warehouses. Shrinkage from concealed merchandise — phones, electronics, cosmetics, apparel — walks out under clothing, and most of it is invisible to a metal detector.
- Sees what matters: boxed and unboxed goods, metallic or not, revealed with size, shape and location
- Fits shift change: hundreds of people screened per hour per camera, so exits don't jam and paid time isn't wasted
- No physical searches: faster, safer and far less confrontational than pat-downs, with imagery that respects dignity and GDPR
- Deterrence that compounds: visible, credible screening changes behaviour from day one, and SmartCount logs every screen for your audit trail
The result is a screening regime that unions, HR and operations can all live with, and a measurable drop in stock walking out the door.
See the Unseen at Our Hampshire Demo Facility
As an official Thruvision reseller, RedteQ supplies, installs, commissions and supports the full range across the UK & Ireland. Watch it find concealed items live at our Hampshire facility, by appointment, or talk through a loss prevention trial for your site.
